R700 counter rotating 4 head concrete grinder
More details

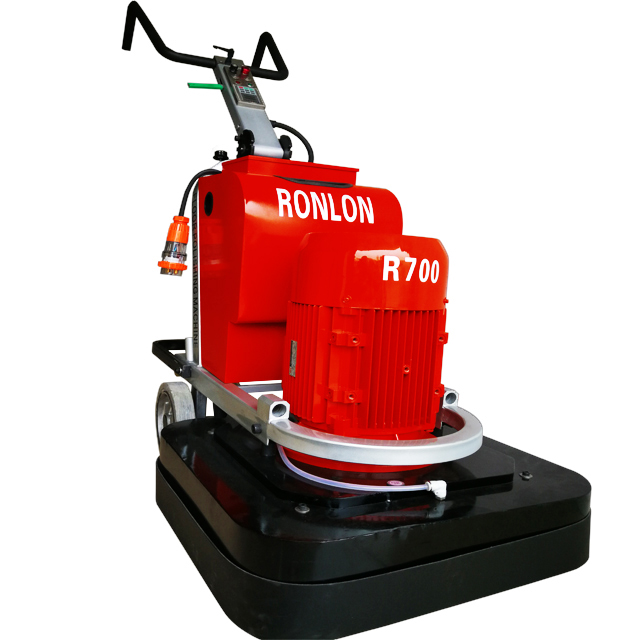

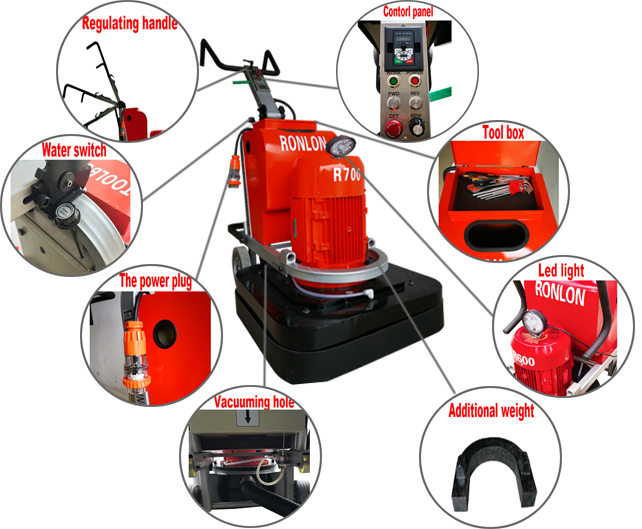

R700 counter rotating 4 head concrete grinder with four gear driven heads equipped with Polishing System's aircraft quality aluminum magnetic plate system, not leave trace on floor when the four square plates square cross to work. Whether you're removing coatings, prepping a new surface or polishing the substrate this machine will give you professional results in minimal amount of time.
Model | R700A | R700B |
Voltage | 380-440V 3 Phase | 220-240V 1 Phase |
Motor | 15hp(11kw) | 20hp(15kw) |
Inverter | 15hp(11kw) | 25hp(18kw) |
Working width | 700mm | 700mm |
Rotating speed | 300-1800RPM | 300-1800RPM |
Tools Holder Diameter | 380MM*4 | 380MM*4 |
Water Tank | 32L | 32L |
Weight | 280KG | 280KG |
Extra Weight | 1*35KG | 1*35KG |
Packing size | 1250*800*1130MM | 1250*800*1130MM |
Working video:
