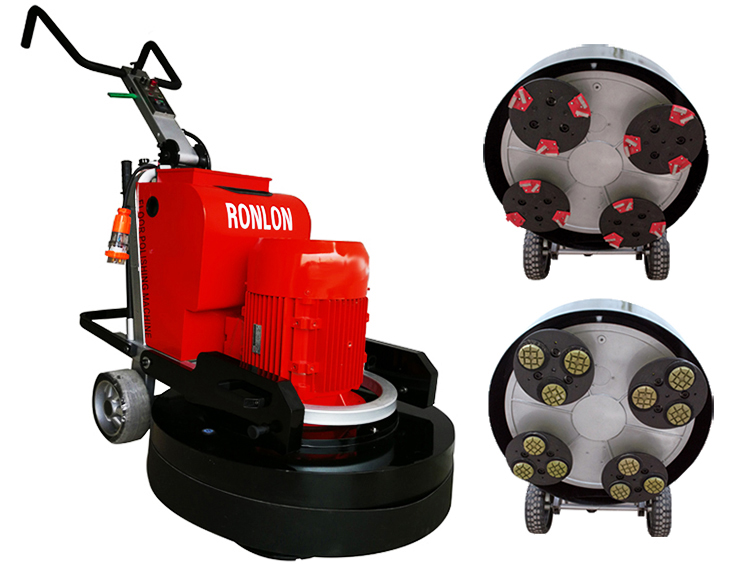

Ronlon R860-4 Concrete Floor Surface Grinder is the ultimate choice when it comes to high performance and efficiency, with 4 heads grinder you get an up 30% more effective grinding and stripping and obviously a more level floor. This machine will be your No 1 professional machine choice for larger jobs.
TECHNICAL PARAMETER OF Concrete Floor Surface Grinders
|
Model |
R860-4A |
R860-4B |
|
Voltage |
380-440V 3 phase |
220-240V 1/ 3 phase |
|
Motor |
15hp(11kw) |
20hp(15kw) |
|
Inverter |
20hp(15kw) |
25hp(18.5kw) |
|
Working Width |
840mm |
840mm |
|
Rotating Speed |
300-2000RPM |
300-2000RPM |
|
Tools Holder Diameter |
300mm*4 |
300mm*4 |
|
Water Tank |
32L |
32L |
|
Weight of Machine |
310kg |
310kg |
|
Additional Weight |
2*20kg |
2*20kg |
|
Packing Size |
900*1200*900mm |
900*1200*900mm |
1. LED light for working at night.
2. Turning type full- steel weight.
3. Toolbox is fixed on the machine, convenient to repair machine and also tools replacement job will
be easily and quickly.
4. New display panel.
5. A knob type water switch, to easy control water.
6. Pull-line angle adjustment device, convenient and labor-saving.
7. USB interface and adjustable mobile phone holder.
8. Australia Industrial plug and socket, Waterproof Rating: IP67
Work video for R860-4
Customer Order
Ronlon Company
FAQ
Q. Does machine come with gear system or belt type?
A. Our Ronlon Line of all gear Grinders and Polishers use helical gears in an oil bath just like the transmission in your car to produce high torque to the floor with no noise and wear. This is the only planetary grinder on the market that uses thrust bearings, just like in the wheel of your car to reduce wear and give you a long working life span.
Q. How to attach the diamond tools to the Ronlon machine?
A. Ronlon Machine’s standard Magnetic Instant-change tool mounting system,
Q: Can more weights be added to the machine?
A: Yes, of course, it depend on you.
Q: Does the machine can be attached to vacuum?
A:Yes, it can, the diameter of the port is 50mm, common criteria.
Q:Can we design the machines and use ourselves Logo?
A:Yes, just supply the color and design you like, we can do as you like, and OEM and ODM is welcomed.
Q:What does the connection to the machines look like? Does the machines come with cord?
A:Please check the power line,10 meters come with machines,the orange socket connection machine, the otherconnect your power.
